Whole grip™
6-hole plank
12" wide
Factory Direct
Made in the USA
Fast Lead Times
Custom Solutions Available
Built around
its holes
With 40% open surface area, Whole Grip™ creates a true self-clearing effect with fluids, grease, and debris. Its seamless one-piece construction has no welds or rivets to fail. The workhorse for drainage, airflow, and mezzanines over production floors.
Configurations
Pick your width

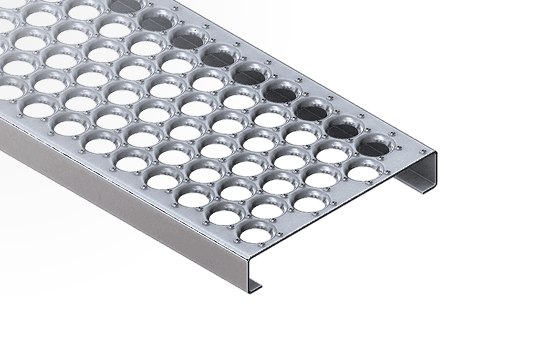

Plank widths from 5 to 24 inches, each with circular openings sized for drainage and airflow. 30-inch planks and walkways, stair treads, and custom fabrication are also available.
5-Inch
Width
Channel
Span
Surface
5"
1-1/2", 2"
up to 18'
2 Hole
View Specs →
7-Inch
Width
Channel
Span
Surface
7"
1-1/2", 2", 3"
up to 18'
3 Hole
View Specs →
10-Inch
Width
Channel
Span
Surface
10"
1-1/2", 2", 3"
up to 18'
5 Hole
View Specs →
12-Inch
Width
Channel
Span
Surface
12"
1-1/2", 2", 3"
up to 18'
6 Hole
View Specs →
18-Inch
Width
Channel
Span
Surface
18"
1-1/2", 2", 3"
up to 18'
10 Hole
View Specs →
24-Inch
Width
Channel
Span
Surface
24"
2”, 3”
up to 18'
13 Hole
View Specs →
Walkways

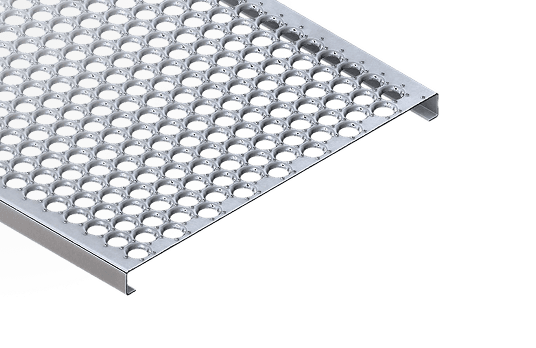

Round-hole walkways, factory-built
Whole Grip™ walkways are 24”-wide, 13-hole panels with a 5” channel, circular openings for drainage and airflow on long pedestrian spans. Built in HRP&O, galvanized G90, aluminum, and stainless, with standard lengths from 6’ to 12’ plus custom.
24” · 13 Hole Walkway
Width
Pattern
Channel
Weight
24”
13 hole
5”
12.41 lbs/lf
Materials & gauges
Steel HRPO
Galv G90
Aluminum
Stainless
13 ga · 11 ga
13 ga · 11 ga
8 ga .125”
16 ga 304
Standard lengths
6 ft
8 ft
10 ft
12 ft
71-15/16”
95-15/16”
119-15/16”
143-15/16”
Load tables
Spans published to 12 feet.
Whole Grip™ walkway load tables (24” · 13 hole) publish uniform and concentrated capacities across clear spans from 2’ to 12’. Use published values for reference and confirm final design with a licensed engineer.
Load data
Download PDF
Full catalog
Complete load tables, spec sheets, and material configurations across all three product lines.
Engineering
Project-Specific Calcs
Send us your span, load conditions, and environment. We'll spec the configuration.
why Gator grip
What you get with every panel
Up to 40% Open Area
Circular openings let water, air, and light pass, without dropping tools through.
Self-Clearing Surface
Drains fluids, grease, mud, and debris on contact. Ice breaks away underfoot.
One-Person Install
Up to 73% lighter than bar grating. Bolts or clamps, no welding.
Corrosion-Resistant
Galvanized, stainless, and aluminum options for harsh environments.
You may also Need
Two more product lines
Different surface, different use case, same factory, same lead times.
Safety starts where you step™
From standard widths up to 10-diamond planks, manufactured in-house, cut to your specs.
Manufacturing safety grating in Dallas, TX since 2017. ISO 9001:2015 certified. Factory direct.
