Gater Grip™

Gater grip

Gater grip

The most aggressive surface we make

The most aggressive surface we make

Serrated diamond traction for snow, ice, oil, and mud. Available in widths up to 10-diamond, including the wide-format planks most suppliers can't manufacturer. Gater Grip is great for ice accumulation because it is easily broken under normal foot pressure. The design allows easy access for cleaning with brushes, liquid solutions, or air spray, reducing maintenance efforts.


Most sections can be swiftly bolted, clamped, or welded in place, with the ability to be cut at various angles to accommodate field adjustments. Multiple attachment options allow for secure fastening to existing surfaces, enabling fast setup and easy disassembly when needed.

Serrated diamond traction for snow, ice, oil, and mud. Available in widths up to 10-diamond, including the wide-format planks most suppliers can't manufacturer. Gater Grip is great for ice accumulation because it is easily broken under normal foot pressure. The design allows easy access for cleaning with brushes, liquid solutions, or air spray, reducing maintenance efforts.


Most sections can be swiftly bolted, clamped, or welded in place, with the ability to be cut at various angles to accommodate field adjustments. Multiple attachment options allow for secure fastening to existing surfaces, enabling fast setup and easy disassembly when needed.

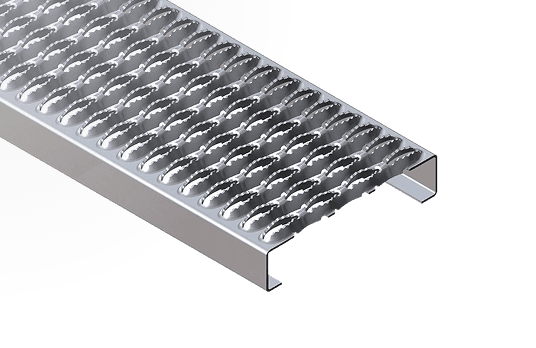

Gater Grip™

5-diamond plank

11-3/4" wide

Factory Direct
Made in the USA
Fast Lead Times
Custom Solutions Available

Safety Starts Where You Step

Gater Grip™ is the most aggressive non-slip grating in our line. The serrated diamond pattern bites in every direction, creating traction that holds when contaminants build up, petrochemical platforms, outdoor staircases in winter, processing floors, exposed walkways. It’s more rugged than Max Tread™ and a more pronounced feel than Whole Grip™. That’s the trade-off. That’s also why it works where they wouldn’t!

Configurations

Pick your width

Pick from any of our standard sizes from 2-10 diamond widths. However, custom channel heights are available up to 4-1/2" along with custom lengths up to 18'. Request a quote for customizations.

2 diamond

Width

Channel

Span

Materials

4-3/4"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

3 diamond

Width

Channel

Span

Materials

7"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

4 diamond

Width

Channel

Span

Materials

9-1/2"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

5 diamond

Width

Channel

Span

Materials

11-3/4"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

8 diamond

Width

Channel

Span

Materials

18-3/4"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

Available with IGP

10 diamond

Width

Channel

Span

Materials

24"

3"

18'

HRPO · GALV · ALUM · SS

View Specs →

Available with IGP

Walkways

Full-width coverage that walks

Gater Grip™ walkways are purpose-built 24”-wide, 10-diamond planks with a 4.5” channel, the same serrated, multi-directional traction as our planks, sized for platforms, catwalks, and continuous pedestrian runs. Available in HRP&O, galvanized G90, aluminum 5052-H32, and 304 stainless.

Gater Grip 24 inch 10-diamond walkway
24” · 10 Diamond Walkway

Width

Pattern

Channel

Weight

24”

10 diamond

4.5”

8.6–12.0 lbs/lf

Materials & gauges

Steel HRPO

Galv G90

Aluminum

Stainless

14 ga · 12 ga

14 ga · 12 ga

12 ga · 10 ga

16 ga 304

Spans & service

Load tables

Deflection

Use

Design

2’–12’ clear spans

≤0.250” @ 100 psf

Platforms · catwalks

Engineer verify

Pedestrian

Comfort-rated underfoot.

Gater Grip™ walkway load tables call out spans where deflection stays at or below 0.250” under a uniform 100 lbs/ft² load, the comfort threshold for pedestrian traffic. Always verify spans with a licensed engineer for your application.

Load data

Specs that hold under load

Specs that hold under load

Load capacity varies by material, gauge, channel depth, and span. Download the full catalog for complete load tables across every Gater Grip™ configuration, or send us your application details and we’ll run the numbers for your specific project.

Load capacity varies by material, gauge, channel depth, and span. Download the full catalog for complete load tables across every Gater Grip™ configuration, or send us your application details and we’ll run the numbers for your specific project.

Download PDF

Full catalog

Complete load tables, spec sheets, and material configurations across all three product lines.

Engineering

Project-Specific Calcs

Send us your span, load conditions, and environment. We'll spec the configuration.

why Gater grip

What you get with every panel

Multi-Directional Traction

Serrated diamond pattern grips in any direction, through any contaminant.

Self-Clearing Surface

Open design drains water, oil, mud, and debris fast. No buildup.

One-Person Install

Up to 73% lighter than bar grating. Bolts or clamps, no welding.

Corrosion-Resistant

Galvanized, stainless, and aluminum options for harsh environments.
