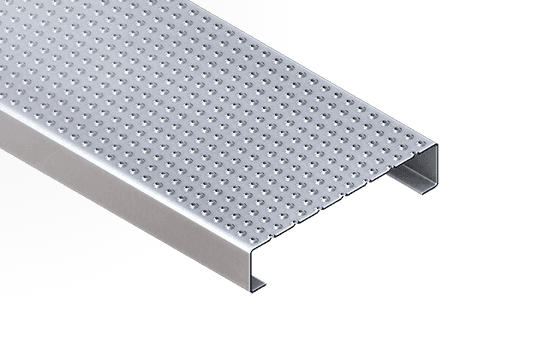

Max Tread™
18-dimple plank
12" wide
Factory Direct
Made in the USA
Fast Lead Times
Custom Solutions Available
The one you can
walk on all day
Max Tread™ makes the walk form the office to the warehouse easy. Hundreds of raised, perforatied buttons deliver multi-directional traction with an ADA standard surface. Great for ladder rungs, ramps, stair treads and high-traffic walkways, Max tread has a minimal abbrasion surface. It's the grating you spec when people and their foorwear live on.
Configurations
Pick your width
Three plank widths stamped with our raised perforated-button pattern, plus stair treads, OSHA-rated ladder rungs, and custom fabrication. Cut to length, built to spec.
7-Inch
Width
Channel
Span
Surface
7"
1-1/2", 2", 3"
18'
10 Dimple
View Specs →
10-Inch
Width
Channel
Span
Surface
10"
1-1/2", 2", 3"
18'
15 Dimple
View Specs →
12-Inch
Width
Channel
Span
Surface
12"
1-1/2", 2", 3"
18'
18 Dimple
View Specs →
Ladder Rungs
Grip on every rung
The same raised-button surface, formed into three ladder rung profiles, HRP&O, galvanized, aluminum, and 304/316 stainless, in 48-3/4" and 60" standard lengths. If you need a custom channel height, width, and length.
2-Row
Width
Height
Length
Materials
1-1/4"
1-1/2"
48-3/4", 60"
HRPO · GALV · ALUM* · SS*
3-Row
Width
Height
Length
Materials
1-5/8"
1-1/8"
48-3/4", 60"
HRPO · GALV · ALUM* · SS*
4-Row
Width
Height
Length
Materials
2-1/4"
1-1/2"
48-3/4", 60"
HRPO · GALV · ALUM* · SS*
OSHA Compliant
29 CFR 1910.23 · 29 CFR 1926.1053
Max Tread™ ladder rungs adhere to OSHA Ladder Rung Requirements 29 CFR 1910.23 (general industry) and 29 CFR 1926.1053 (construction): each rung supports 250 lbs of concentrated load at midspan without failure or permanent deformation. A minimum safety factor of 2.0 is used in all published safe loads.
Load data
Download PDF
Full catalog
Complete load tables, spec sheets, and material configurations across all three product lines.
Engineering
Project-Specific Calcs
Send us your span, load conditions, and environment. We'll spec the configuration.
why Gator grip
What you get with every panel
Multi-Directional Traction
Hundreds of raised, perforatied buttons deliver multi-directional traction with an ADA standard surface.
ADA-Compliant
Raised perforated buttons meet accessibility standards for stable, walkable footing.
One-Person Install
Up to 73% lighter than bar grating. Bolts or clamps, no welding.
Corrosion-Resistant
Galvanized, stainless, and aluminum options for harsh environments.
You may also Need
Two more product lines
Different surface, different use case, same factory, same lead times.
Safety starts where you step™
From standard widths up to 10-diamond planks, manufactured in-house, cut to your specs.
Manufacturing safety grating in Dallas, TX since 2017. ISO 9001:2015 certified. Factory direct.
